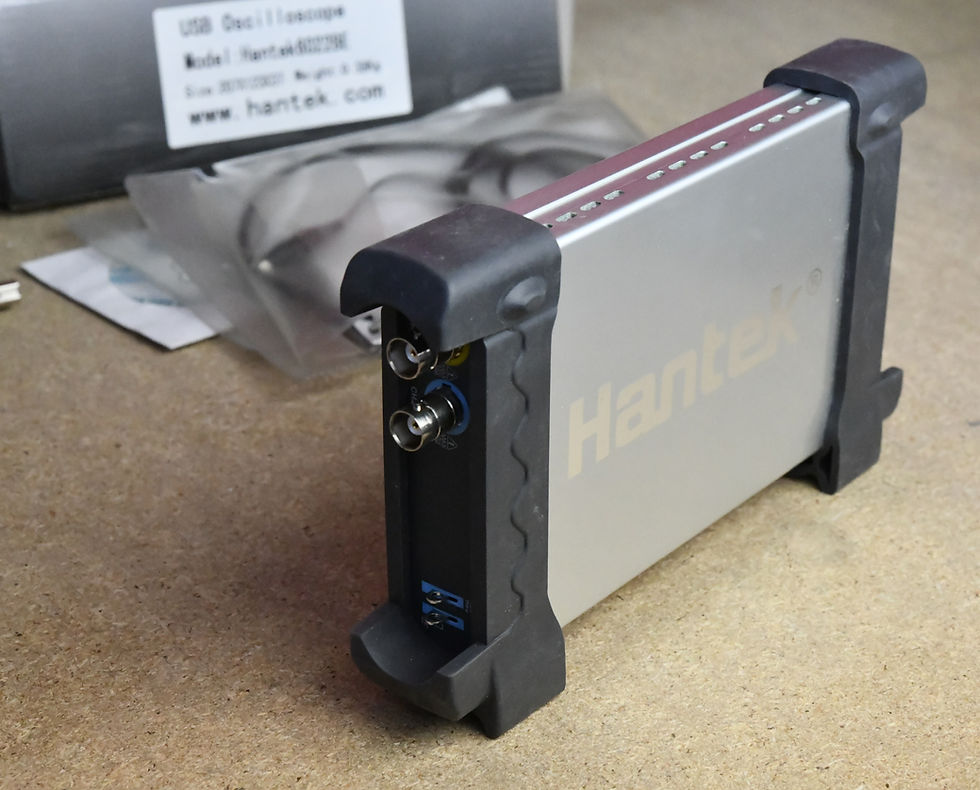

Hantek 6022BE 20MHz-200MHz Budget USB PC Based Digital Storage Oscilloscope
Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;
Excellent industrial design-the same anodised aluminium casing , which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.
Specs
Channel     2 Channels
Bandwidth     20MHz
Input Impedance     1MΩ 25pF
Max. Sample rate     48MS/s
Coupling     DC
Vertical resolution     8Bit
Gain range     20mV-5V
DC accuracy     ±3%
Timebase range     4ns-5ks
Vertical adjustable     Yes
Input protection     Diode clamping
X-Y     Yes
Trigger Mode     Auto, Normal and Single
Trigger Slope     +/-
Trigger level adjustable     Yes
Trigger Type     Rising edge, falling edge
Trigger Source     CH1, CH2     CH1, CH2, EXT
Pre/Post trigger     0-100%
Buffer size     1M     10K-64KB/Channel
Sampling selection     Yes
Waveform Display     port/line, waveform average, persistence, intensity
Network     Open/Close
Vertical mode     CH1, CH2, Dual, ADD
Cursor measurement     Yes
Math     FFT, addition, subtraction, multiplication, division.
Cursor     Frequency, Voltage
Accessories     S/W CD, probes, manual, USB cord
Conditions: Item is new not used, comes in original packing.
